Semi-Automated Spring Pin Inserter

prev || next

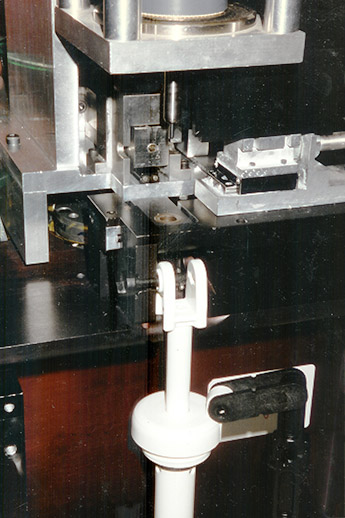

Semi-automated tool press fits a Spirol pin into a smaller hole, overcoming adverse lead-in geometry.  Piezo feeler sensor detects and clocks the pin's long sharp edge away from the product's plastic keyway.  Replaced an unmanufacturable process with streamlined, high throughput workflow.
